Garages

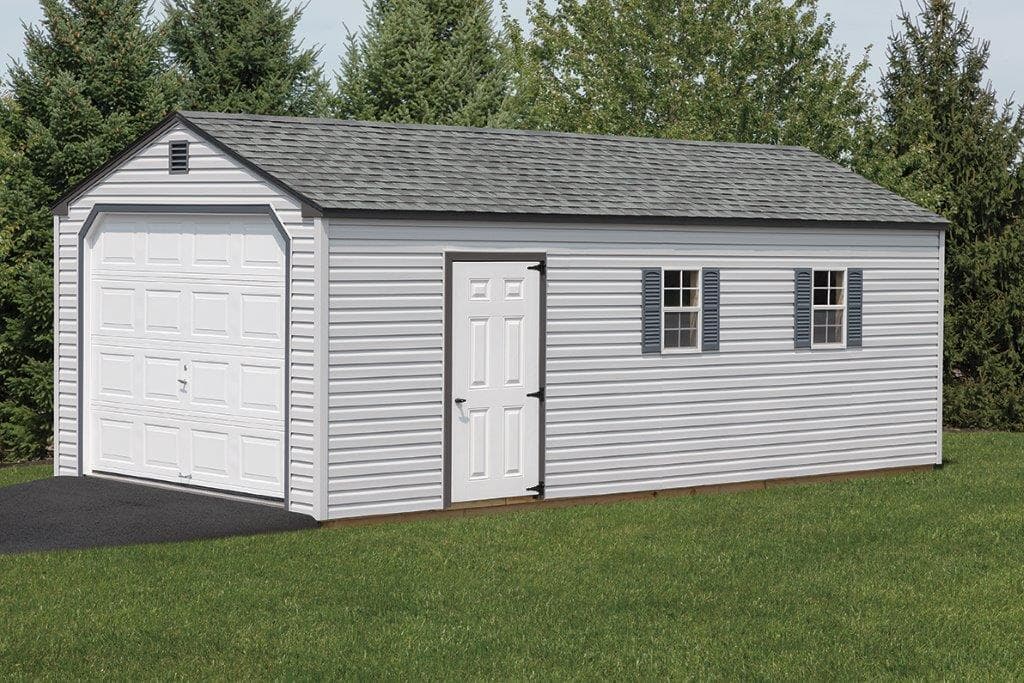

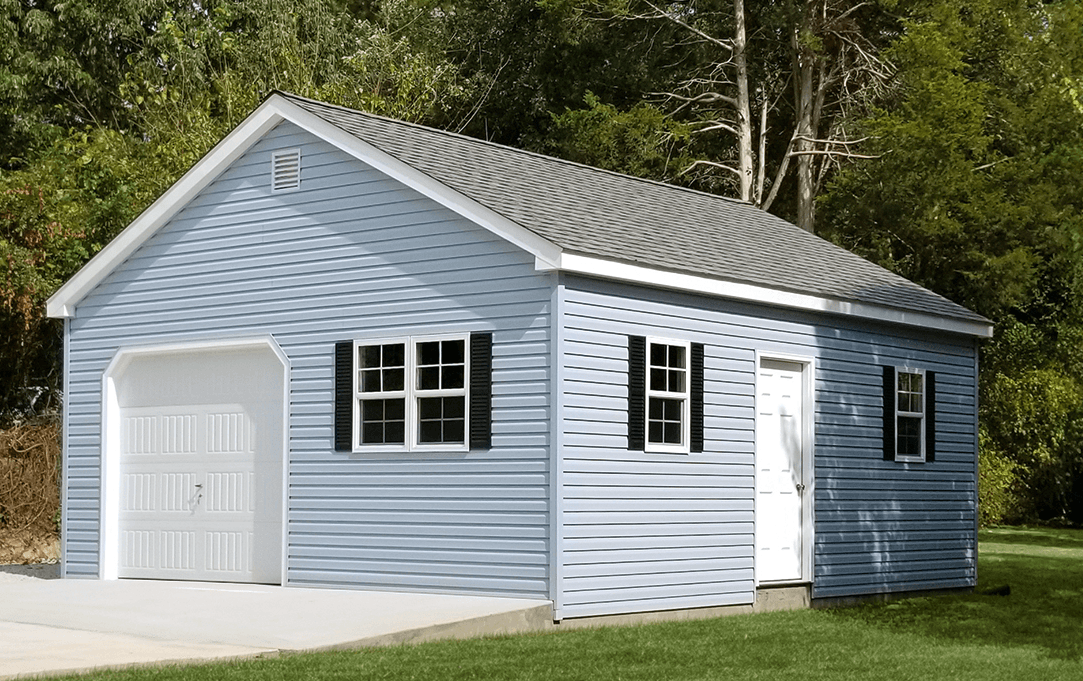

1-Story Build On Site Garage
Two 9x7 garage doors or two 8x7 doors if building is less than 24 ft wide (add extra per door for window of your choice) Or one 14x7 garage door (add extra for window) 24x36 single and double pane windows available One pre-hung entry door. (window in door available) 6 inch roof overhangs. (can be upgraded to 12 inch overhang with vented soffit for building square ft. x 1.00) 8 ft 4 inch wall height. Roof pitch is 5-12 with standard engineered trusses. Wall sheathing is OSB with vinyl siding or LP Smart Side T111 if you choose a painted building. Roof sheathing is OSB with synthetic felt and Lifetime Shingles Emailed generic plans upon request

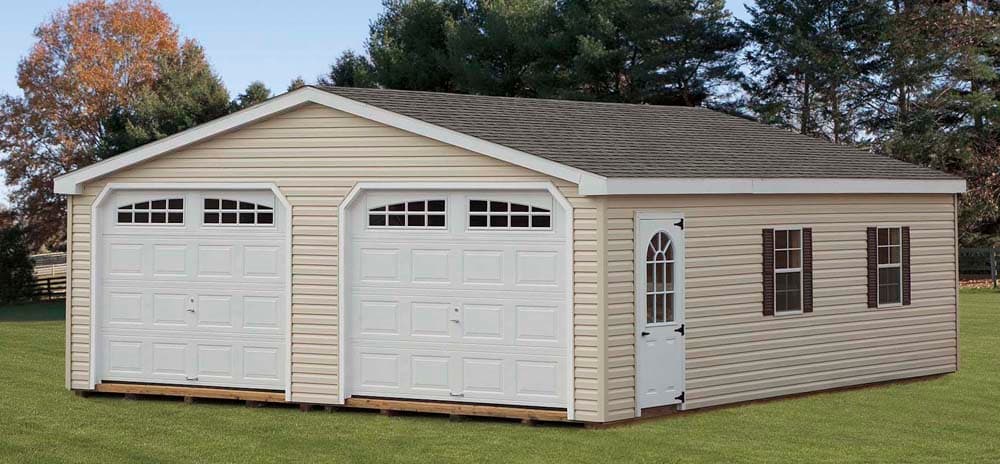

2-Car Modular Garage
The Modular 2-Car Garage is shown as a 24x26 with almond vinyl siding, white trim, slate shingles. This building is shown with the following upgrades, windows in the garage doors and arch glass window in the man door are extra. Call for shipping and set up prices. One entry door, two garage doors and two 2436 windows with shutters, is standard for our Modular Garages. The Modular 2-Car Garage is delivered in two halves and bolted together on site. The 2-Car Garage is built with 7' high walls, a plywood floor on 12” on center pressure treated joists and a pressure treated 4x4 base, and Timberline architectural roof shingles with a limited Lifetime Warranty. This Modular 2-Car Garage is our most economical Garage / Shed. If you are looking for more wall height, a concrete floor or a steeper roof please look at the Build On Site Garages. We can customize this garage to fit your needs.

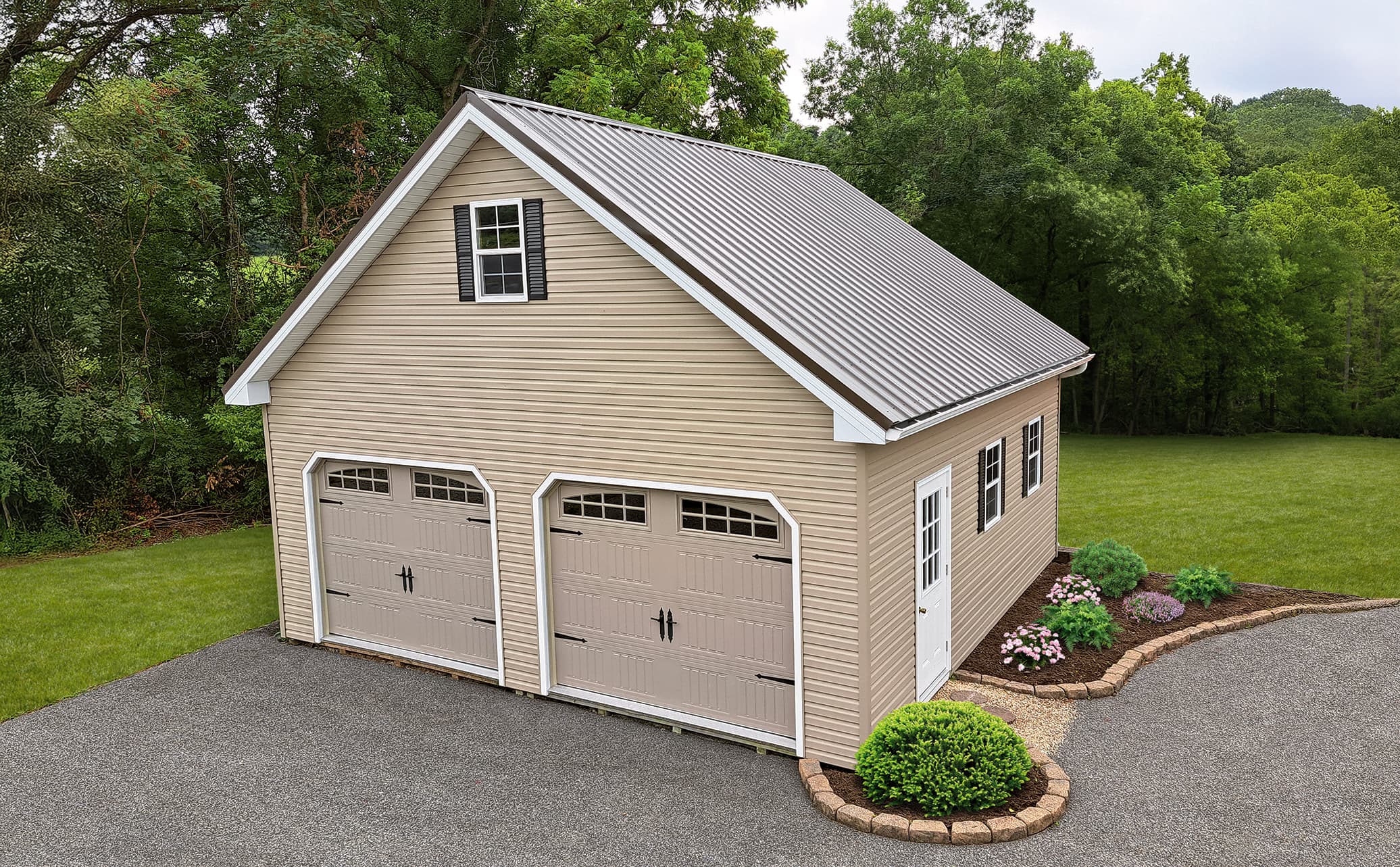

2-Story Build On Site Garage
Overall Height of 18′ 10″ (From floor level to the peak) Choice of Vinyl siding or painted LP Sart SideT111 siding 2×4 studs 16″ on center, OSB sheathing Lifetime Timberline Shingles, synthetic roof felt, House wrap on walls. First Floor: Ceiling Height of 8ft 10 inches (2) Solid 9×7 steel Garage Doors or (1) 16×7 Garage Door (1) Solid Pre-hung House Door ( Windows with Shutters are extra 78.00 each ) Stairway to Second Floor With Hand Rail Second Floor: Second Floor ceiling Height of 7ft at cross ties Engineered I joists at 16″ on center 5/8 plywood flooring ( Windows with shutters are extra ) 2×6 Rafters at 16″ on center 8.5 -12 Roof pitch Lifetime Timberline Roof Shingles and Felt Paper OPTIONS: WOOD FLOOR: Treated 2×4 joist, 12”on center, 10 treated 4×4 runners, PT 3/4 plywood Your wood floor also will need a ( quote per job ) stone base CONCRETE FLOOR : Footers with block or a monolithic floor Higher wall height Gambrel Barn Style Roof with attic trusses Radiant barrier sheathing instead of OSB 4 ply plywood sheathing instead of OSB 24×36 vinyl Double Pane Windows Insulated Garage doors Windows in two Garage doors
A-Frame Garage
The A-Frame Garage is shown as a 12×24 with gray vinyl siding, white trim, black shingles. This building is shown with the following upgrades, a pre-hung house door with a 9-grid rectangle window. The A-Frame Garage Package includes: 12″ OC treated floor joist 7′ walls One 3′ door One 9′ x 7′ garage door 10′ wide garages get 8′ x 6’6” doors Two 18″ x 27″ windows with shutters Gable vents Heavy duty 2×4 frame walls Roof at 16” on center with Lifetime Shingles Optional Add-Ons: Treated floor Garage doorj Garage door insulation Decorative hinges and Alpine lock to CS Garage door Add our New England upgrade

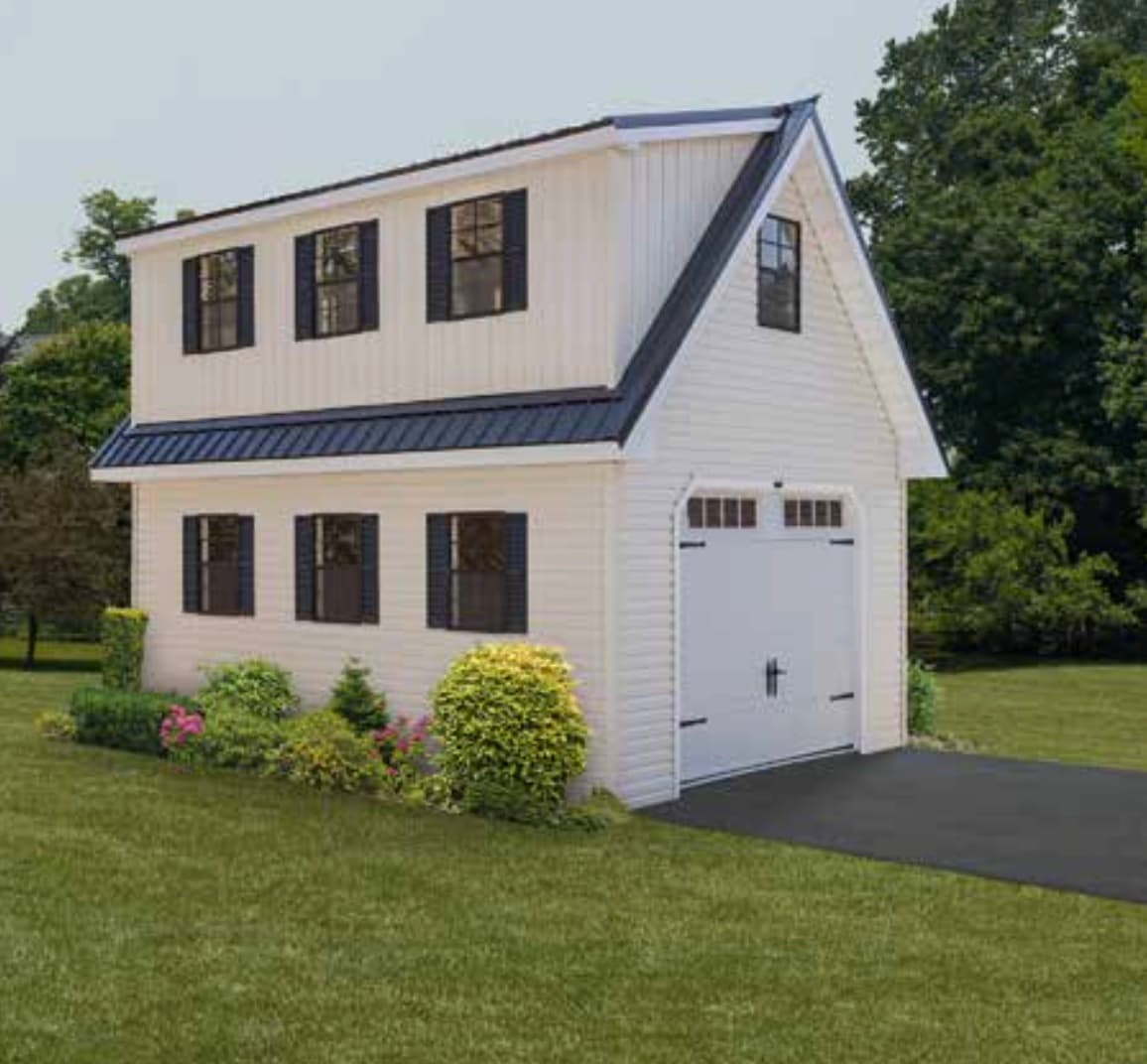

Chalet Garage with Loft
2 Story Garages are available in the standard Garage Sizes. Please call for pricing on other sizes or to place an order. These buildings are available with or without the roof dormers.

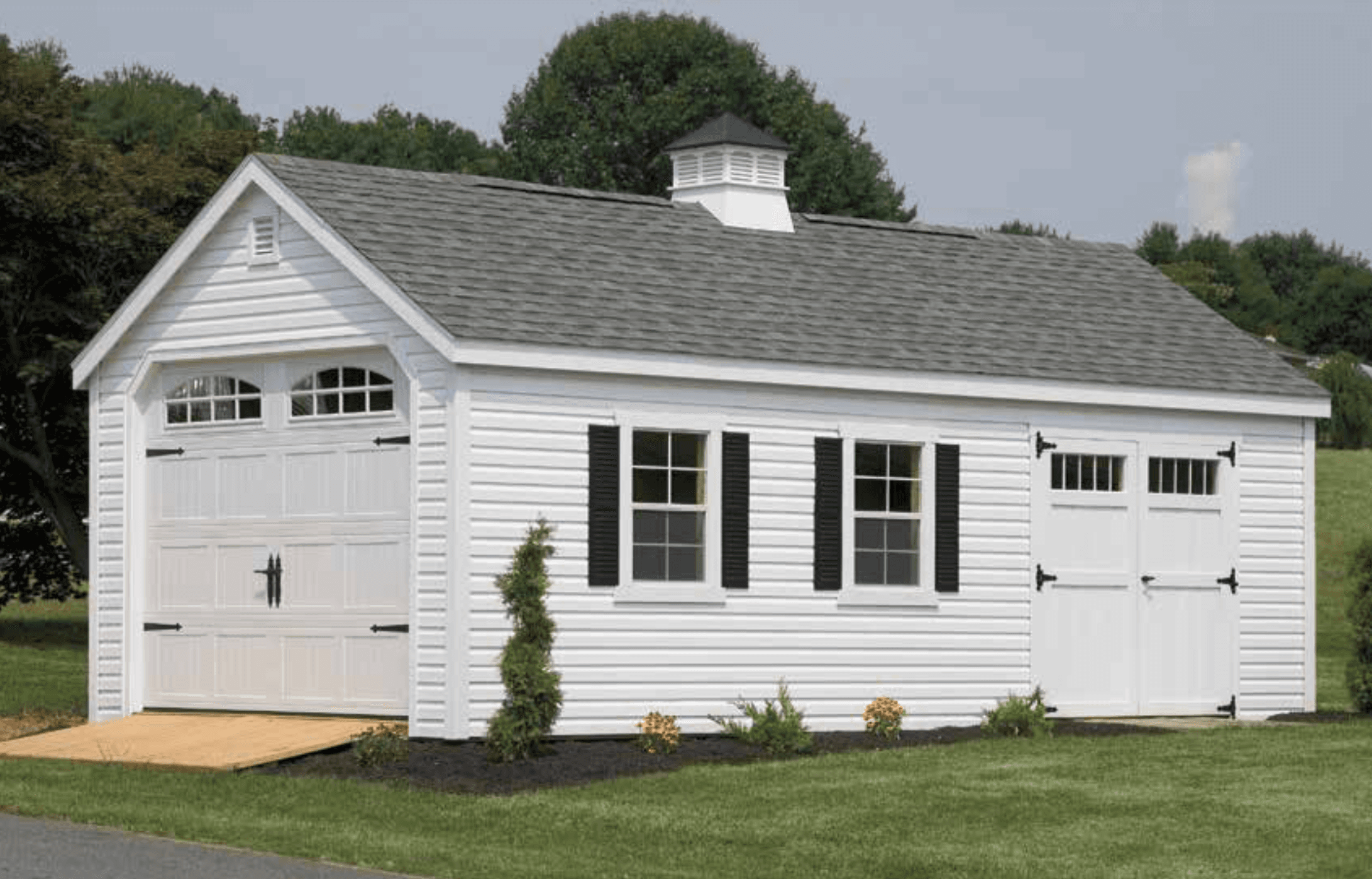

Colonial Garages
This Colonial Garage is shown as a 12×24 with our New England upgrade package with white vinyl siding, white trim, white doors, and slate shingles. This building is also shown with the following upgrades: a double door instead of a single door, a carriage style garage door with windows, a cupola, and ridge vent. The Colonial Garage Package includes: 12″ OC treated floor joist 7′ walls One 3′ door One 9′ x 7′ garage door 10′ wide garages get 8′ x 6’6” doors Two 18″ x 27″ windows with shutters Gable vents Heavy duty 2×4 frame walls Roof at 16” on center with Lifetime Shingles Optional Add-Ons: Treated floor Garage door Garage door insulation Decorative hinges and Alpine lock to CS Garage door Add our New England upgrade

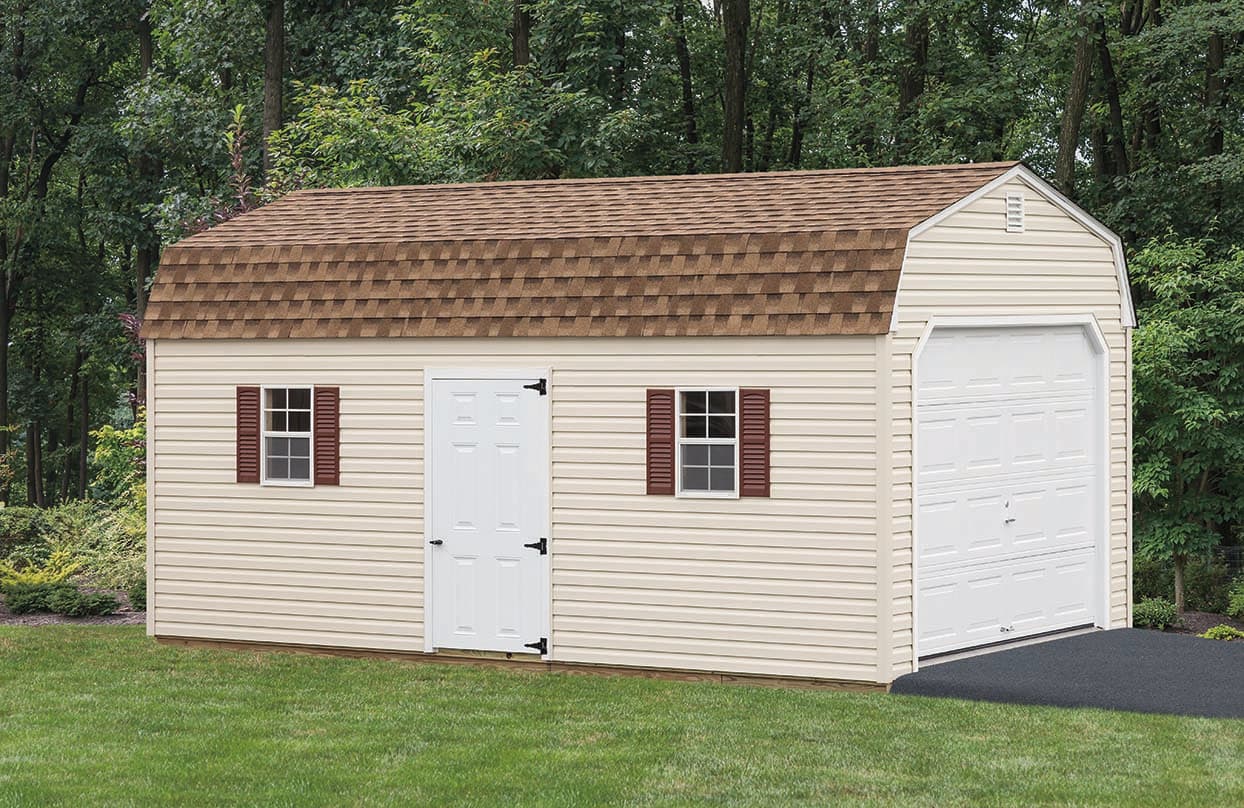

Dutch Garages
This Dutch Barn Garage is shown as a 12 x 20 with Almond Vinyl siding, white trim, tan shingles. The Dutch Barn Garage Package includes: 12″ OC treated floor joist 7′ walls One 3′ door One 9′ x 7′ garage door 10′ wide garages get 8′ x 6’6” doors Two 18″ x 27″ windows with shutters Gable vents Heavy duty 2×4 frame walls Roof at 16” on center with Lifetime Shingles Optional Add-Ons: Treated floor Garage door Garage door insulation Decorative hinges and Alpine lock to CS Garage door Add our New England upgrade This building is ideal for adding a loft area for even more storage.

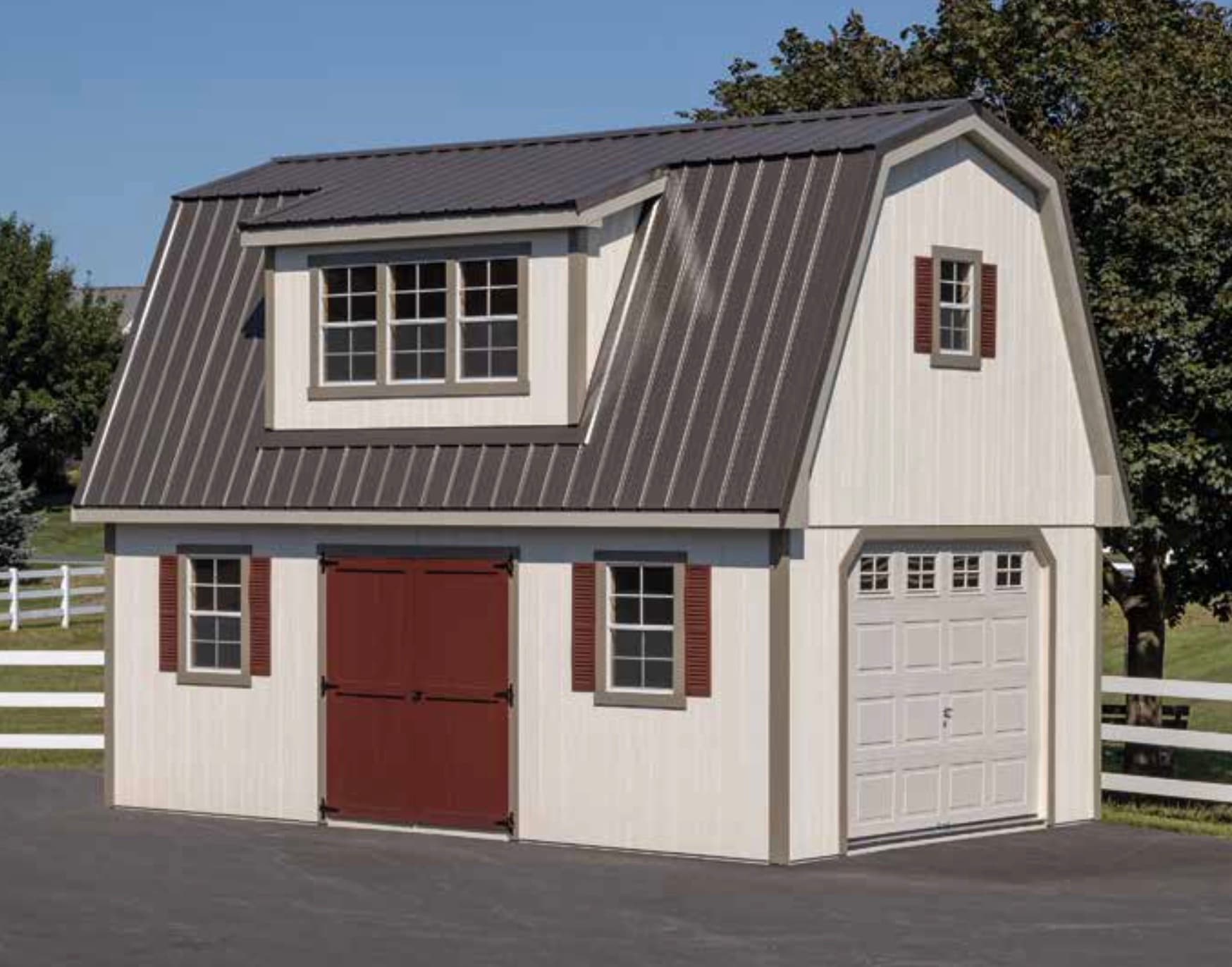

Gambrel Garage with Loft
Base price includes: 1 Solid 9×7 steel Garage Door 1 3′ man door ( your choice of T1-11 or RP fiberglass slab door) First Floor Ceiling Height of 7 ft. 4 1/2 inches Full loft with stairs, hand rail, and railing; or attic steps (specify on order) Roof overhangs = 8 inch eve and 6 inch gable Lifetime Timberline Roof Shingles w/ Felt Paper & ridge vent House wrap over wall sheathing on vinyl buildings Wood floor with 12″ o.c. Joists is included, concrete floor will be extra. Please check your building codes on allowed floor types: Can be built with a wood floor or concrete floor. Options: Higher wall height Shed dormer (windows are not included) See Option Price List for more options, Garage door styles, Metal roof, doors & windows, work benches, shelving and more!
